icomby

온실가스 저감시설 효율분석 통합시스템(QMS + FTIR)

Integrated Greenhouse Gas Reduction Facility Efficiency Analysis System(QMS + FTIR)

온실가스 저감시설의 효율은 해당성분의 농도와 유량을 측정하여 산출됩니다. 측정하려는 온실가스의 농도는 FTIR, 유량은 QMS를 이용하며 이는 환경부에서 권고하는 측정가이드라인에 명시되어 있습니다.

The efficiency of greenhouse gas reduction facilities is calculated by measuring the concentration and flow rate of the component. FTIR is used for the concentration of the greenhouse gas to be measured, and QMS is used for the flow rate.

icomby는 실시간으로 배출되는 온실가스의 배출량을 정보를 측정 종료와 동시에 확인 할 수 있습니다.

icomby can check the amount of greenhouse gas emitted in real time at the same time as the measurement ends.

QMS와 FTIR의 통합시스템으로 안정성, 측정성능에 있어 별도의 시스템에서 발생가능한 측정오차와 불확도를 줄여줍니다.

The integrated system of QMS and FTIR reduces measurement errors and uncertainties that can occur in separate systems in terms of stability and measurement performance.

구분 규격
Model name / Measuring principle icomby / QMS+FTIR
Measuring gas H2, CH4, CO, CO2, N2, O2, He, Ne, Ar, Xe, Kr, SF6, CF4, NF3 HF, HCl, C2F6, C3F8, C4F8 etc
Measuring spec. isepa-s + FTIR
Main power AC220V, 15 A, 50/60 Hz, Single-phase
Operating Environment

Temperature : RT ~ 40℃

Humidity : 0 ~ 80%(non-Condensing)

Elevation : 2,000 or less

Dimensions / Weight 770 x 500 x 1190 (W×D×H, mm) / 50 kg

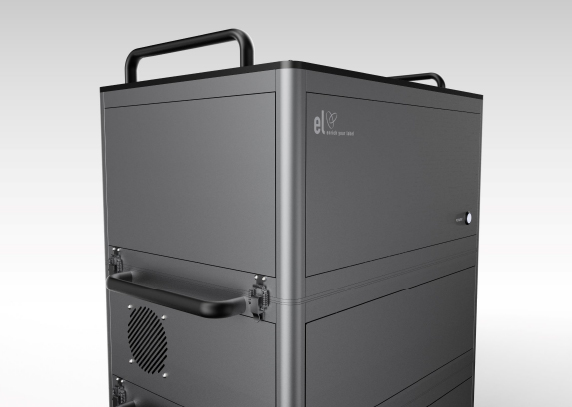

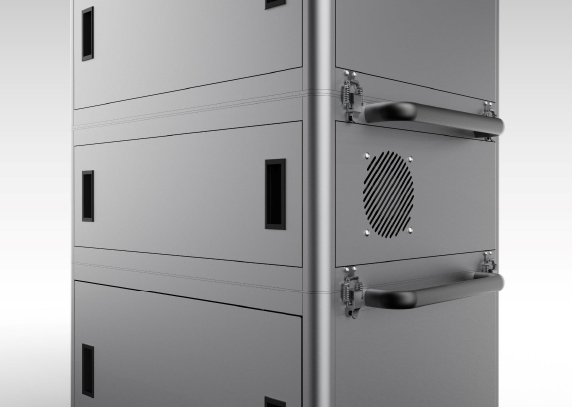

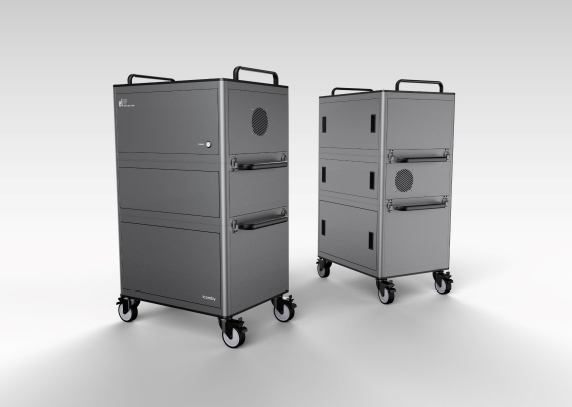

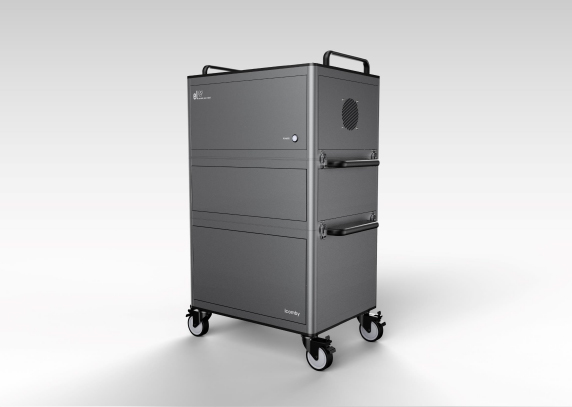

Product Image

- 제품의 디자인은 고객의 요구에 따라 변경될 수 있습니다.
